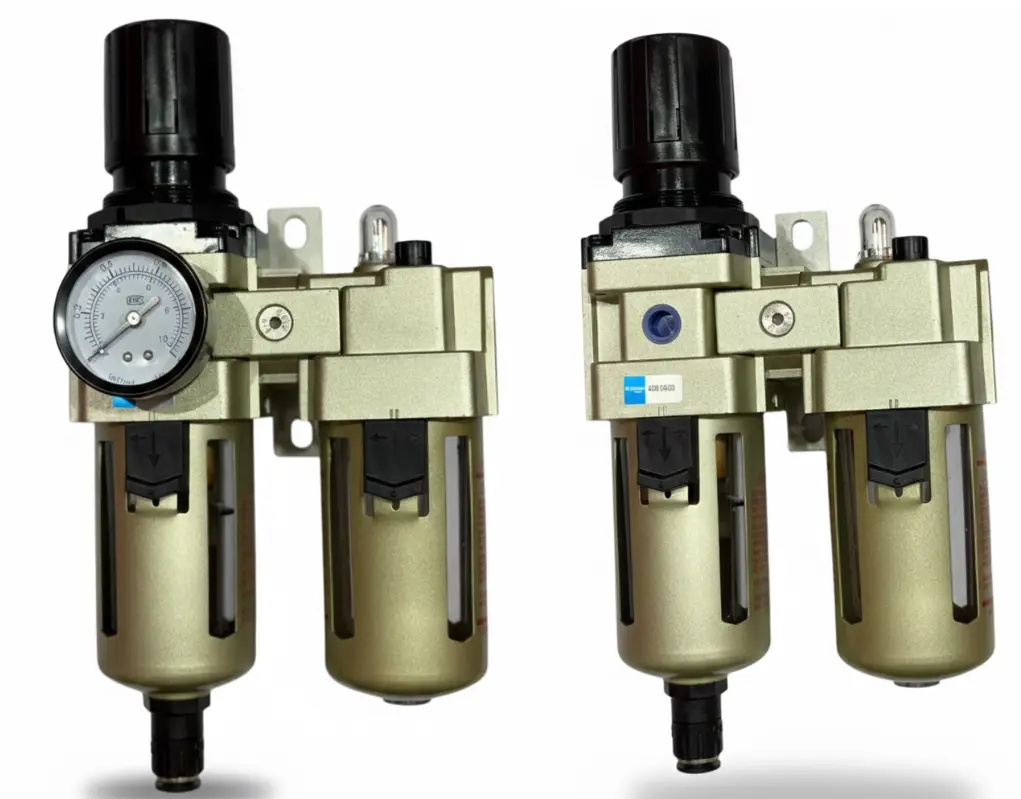

The AIRMIXS AC4010-04DG is a "total-care" air preparation unit. By combining three critical stages into one modular frame, it ensures your pneumatic system receives the highest quality air while significantly reducing maintenance time through its automated drainage system.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AC4010-04DG |
Port Size (Inlet/Outlet) | 1/2" BSP |
Pressure Gauge Port | 1/4" |
Drain Type | Automatic Drain (D) |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Flow Capacity | Approx. 4,000 L/min |
Operating Temp. | 5°C to 60°C |
