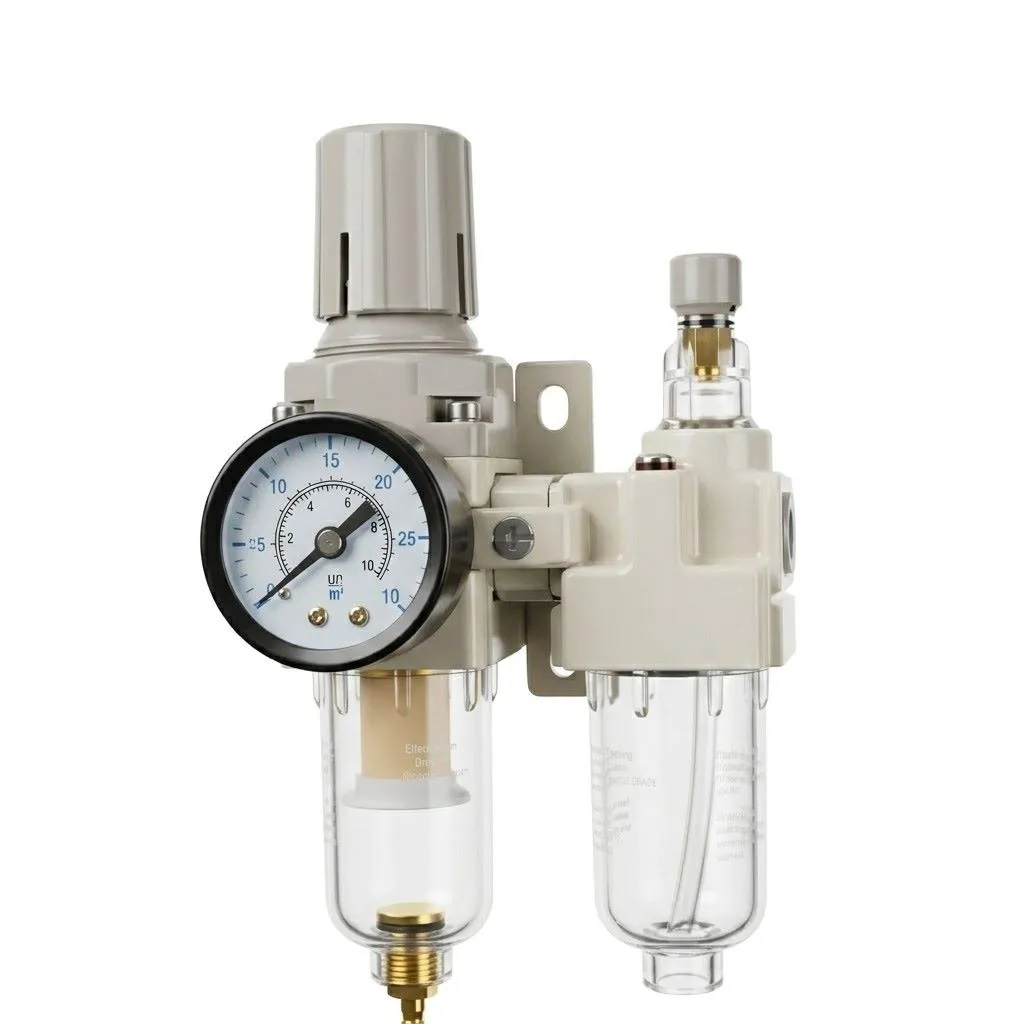

The AIRMIXS AC4010-04 FRL Unitis a high-flow, space-saving air preparation assembly designed to clean, regulate, and lubricate compressed air in industrial pneumatic systems.Combining a piggyback filter-regulator with a proportional micro-fog lubricator into a compact two-piece modular housing, this G 1/2" unit protects air tools, cylinders, and control valves from water, contaminants, and premature wear.
Engineered with a heavy-duty die-cast aluminum body and polycarbonate bowls enclosed in protective metal guards, it provides exceptional durability in demanding workshop environments.The regulator features a press-to-lock adjustment knob to prevent accidental pressure drift caused by machine vibration, while the lubricator offers fine drip control for smooth component lubrication.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | AC4010-04 |
Component Type | Two-Piece Modular Air Preparation Unit (F/R + L Combo) |
Port Size | G 1/2" (BSP) / NPT 1/2" |
Gauge Port Size | G 1/4" |
Filtration Rating | 40 µm (Standard) / 5 µm (Optional) |
Max Supply Pressure | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Pressure Regulation Range | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~3,000 L/min |
Drain Type | Manual Drain / Semi-Auto Drain / Auto-Drain (Optional) |
Recommended Lubricant | ISO VG32 / Turbine No. 1 Oil |
Body Material | Die-Cast Aluminum Alloy |
Bowl & Guard Material | Polycarbonate with Protective Metal Guard |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Fluid Medium | Compressed Air |
