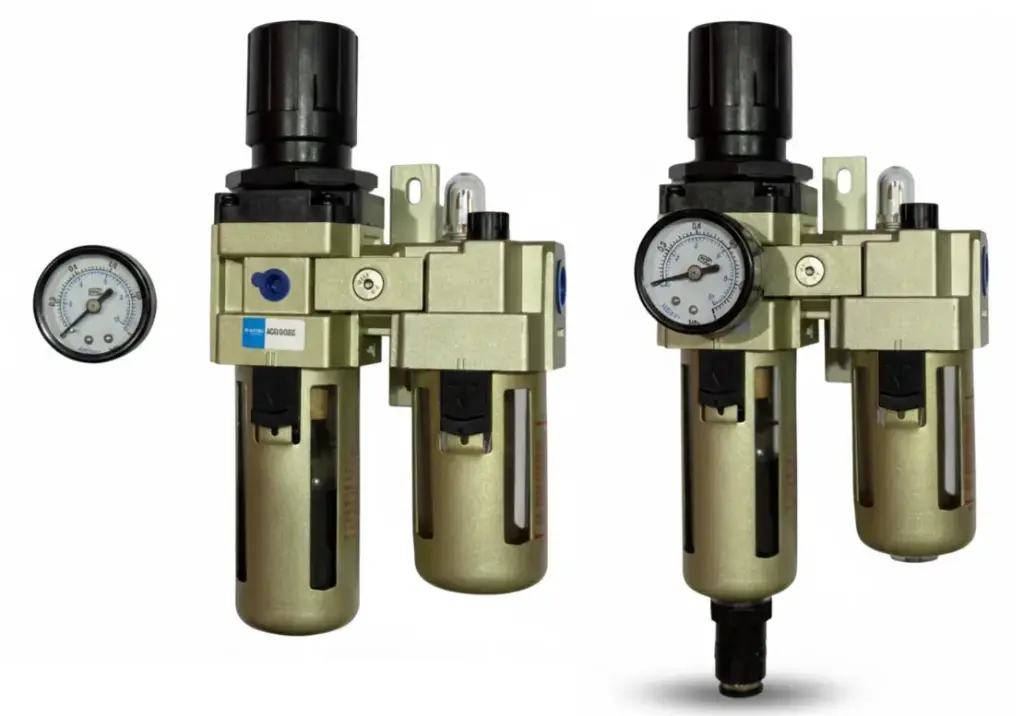

The AIRMIXS AC3010-03DG provides a "set-and-forget" solution for pneumatic air treatment. By combining filtration, regulation, and lubrication into one modular frame, it ensures your system receives the highest quality air with minimal manual intervention.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AC3010-03DG |
Port Size (Inlet/Outlet) | 3/8" BSP |
Pressure Gauge Port | 1/8" |
Drain Type | Automatic Drain (D) |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Flow Capacity | Approx. 2,000 L/min (70 SCFM) |
Operating Temp. | 5°C to 60°C |
