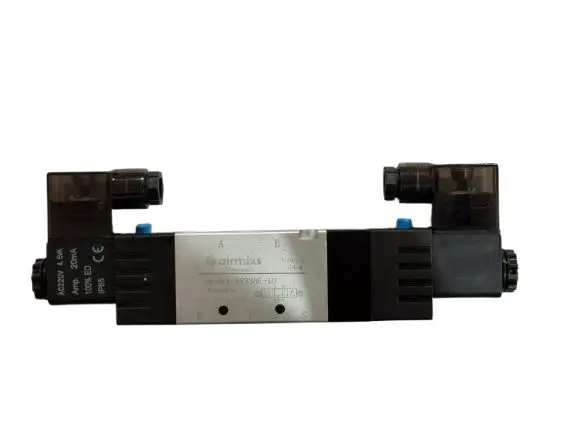

The 4V330E-10 provides sophisticated control over pneumatic cylinders. While a 2-position valve only allows for full extension or retraction, this 3-position valve adds a neutral middle state. In the Exhaust Center configuration, both working ports (A and B) are connected to the exhaust ports (R and S) when de-energized, allowing the cylinder to be moved manually or preventing built-up pressure from causing accidental movement.
Feature | Specification |
|---|
Model | 4V330E-10 |
Valve Type | 5-Port, 3-Position (5/3-Way) |
Center Function | Exhaust Center (Type E) |
Action | Internal Pilot Operated |
Port Size | Inlet/Outlet: 3/8" BSP; Exhaust: 1/4" BSP |
Operating Pressure | 0.15 to 0.8 MPa(21 to 114 PSI) |
Operating Voltage | 220V AC(Standard) |
Operating Temp. | -20°C to 70°C |
Material | Anodized Aluminum Alloy Body |
Protection Class | IP65(Dust and water resistant) |
