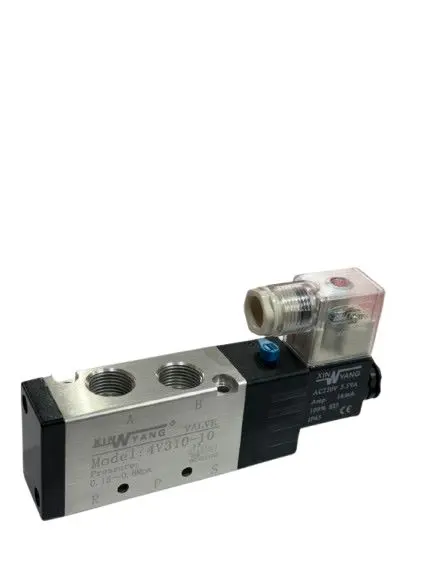

The 4V310-10 is an industrial standard for directional air control. It is a single-control valve, meaning it shifts to the energized state when power is applied and returns to its original position via a spring when power is removed.
Feature | Specification |
|---|
Model | 4V310-10 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Action | Internal PilotOperated |
Port Size | Inlet/Outlet: 3/8" BSP/NPT/PT; Exhaust: 1/4" |
Flow Capacity | Cv = 1.40 to 1.68(30.0 $mm^2$effective area) |
Operating Pressure | 0.15 to 0.8 MPa(21 to 114 PSI) |
Max. Frequency | 5 Cycles / Second |
Proof Pressure | 1.2 MPa to 1.5 MPa |
Working Temperature | -20°C to 70°C |
Material | Aluminum Alloy Body |
