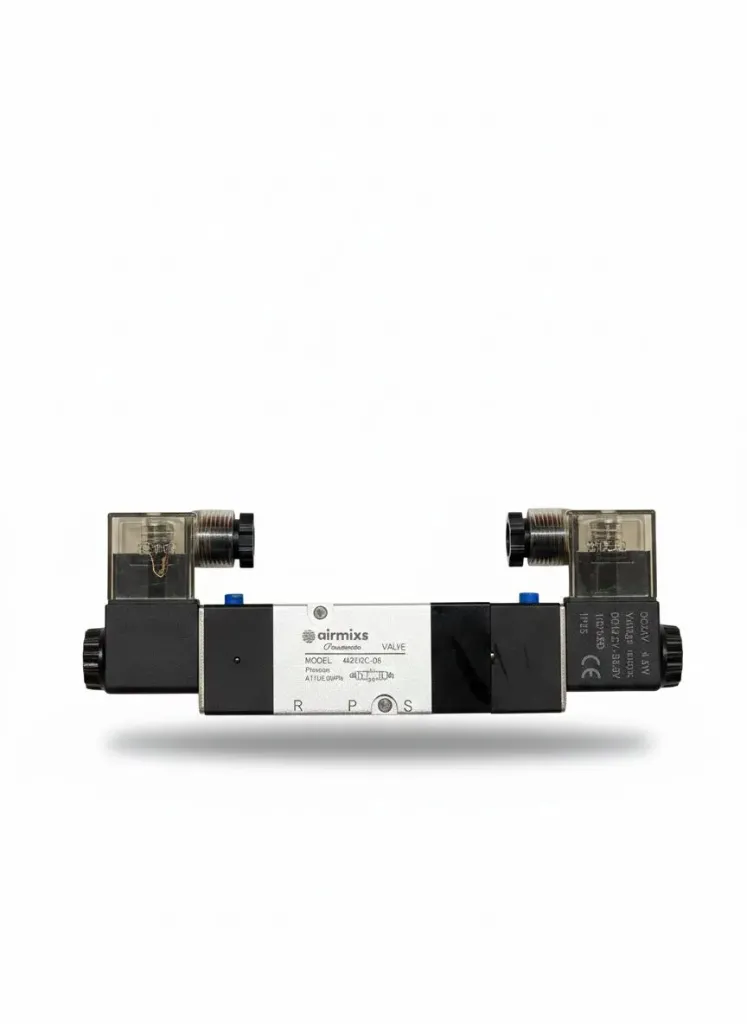

The AIRMIXS 4M230-08 DC 24V is a high-performance 5/3-way NAMUR-style solenoid valve designed specifically for the direct control of pneumatic actuators. This "230" series valve features a double solenoid configuration with a 3-position function, allowing for versatile control such as "closed center," "exhaust center," or "pressure center" depending on the specific model variation.
Built with a specialized sliding column structure, it offers high sensitivity and excellent airtightness. The NAMUR interface allows for direct mounting onto pneumatic actuators, eliminating the need for additional piping and reducing installation time. Its internal pilot-oriented mode ensures a low start-up pressure and a long service life with minimal friction.
Feature | Specification |
|---|
Model | 4M230-08 |
Brand | AIRMIXS |
Valve Type | 5 Port 3 Position (5/3 Way) |
Acting Type | Internal Piloted |
Port Size | G 1/4"(Inlet/Outlet) |
Exhaust Port | G 1/8" |
Voltage | DC 24V |
Operating Pressure | 0.15 – 0.8 MPa (1.5 – 8 bar) |
Proof Pressure | 1.2 – 1.5 MPa (12 – 15 bar) |
Operating Temp. | -20°C to 70°C |
Body Material | High-strength Aluminum Alloy |
Protection Class | IP65(Dust-tight and water-resistant) |
Lubrication | Not Required |
