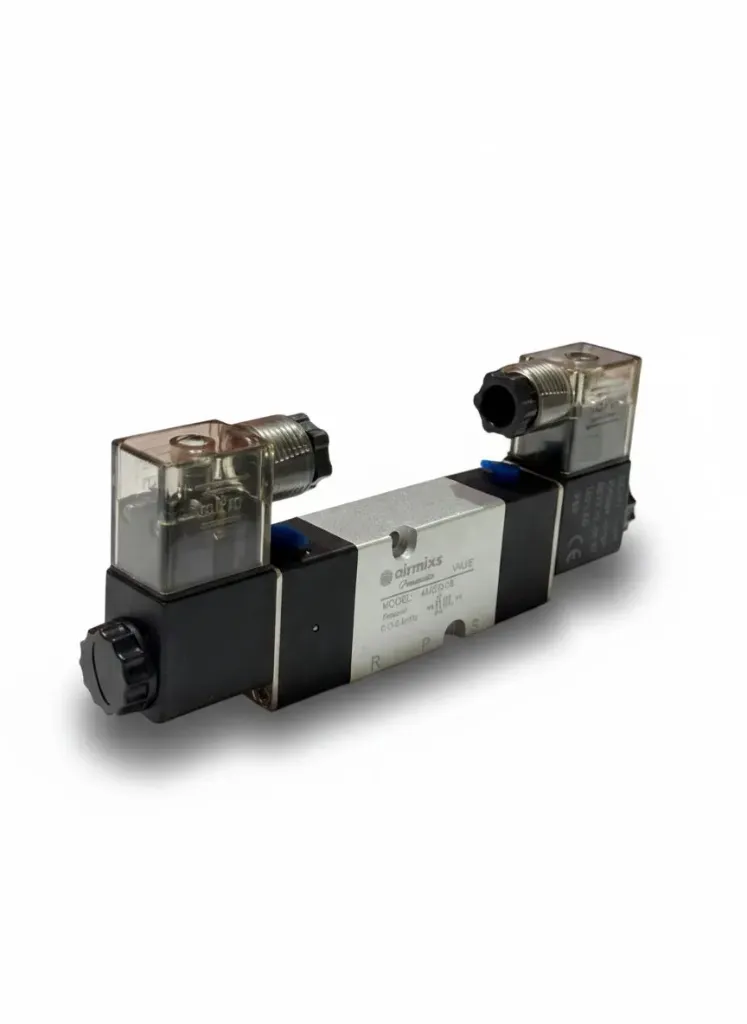

The AIRMIXS 4M220-08 DC 24V is a high-reliability 5/2-way double solenoid valve featuring a NAMUR interface for direct mounting to pneumatic actuators. This valve is designed for industrial automation tasks where a "memory" function is required; because it uses two solenoids, the valve remains in its last actuated position even if power is lost.
The 4M220-08 utilizes an internal pilot-oriented structure and a high-precision sliding column design that ensures excellent airtightness and sensitive response times. Its rugged aluminum alloy body and IP65-rated coils make it suitable for demanding environments, while the NAMUR mounting plate simplifies installation by eliminating the need for additional manifold piping.
Feature | Specification |
|---|
Model | 4M220-08 |
Brand | AIRMIXS |
Valve Type | 5 Port 2 Position (5/2 Way) |
Acting Type | Internal Piloted |
Configuration | Double Solenoid(Memory Function) |
Port Size | In/Out: G 1/4" |
Voltage | DC 24V |
Operating Pressure | 0.15 – 0.8 MPa (1.5 – 8 bar) |
Proof Pressure | 1.2 MPa (12 bar) |
Operating Temp. | -20°C to 70°C |
Protection Class | IP65(Dust-tight and water-resistant) |
Material | High-strength Aluminum Alloy |
Max. Frequency | 5 cycles / sec |
