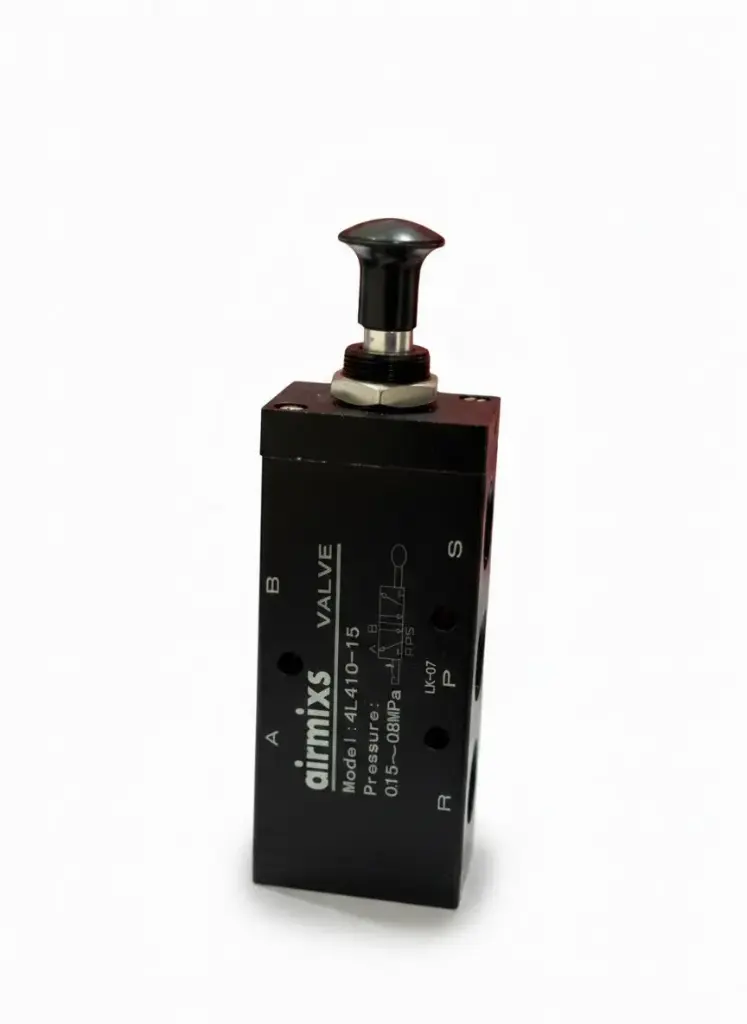

The 4L410-15 is an essential manual reversing element for high-capacity pneumatic systems. By pulling or pushing the handle, the operator manually directs the spool to switch air paths, which in turn controls the extension or retraction of large double-acting cylinders.
Feature | Specification |
|---|
Model | 4L410-15 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Action Type | Direct Acting |
Actuator Type | Hand Pull (Latching) |
Port Size (In/Out/Exhaust) | 1/2" G / PT / |
Effective Sectional Area | 50.0 $mm^2$(Cv = 2.79) |
Operating Pressure | 0 – 0.8 MPa(0 – 114 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Operating Temp. Range | -20°C to 70°C |
Body Material | Aluminum Alloy |
