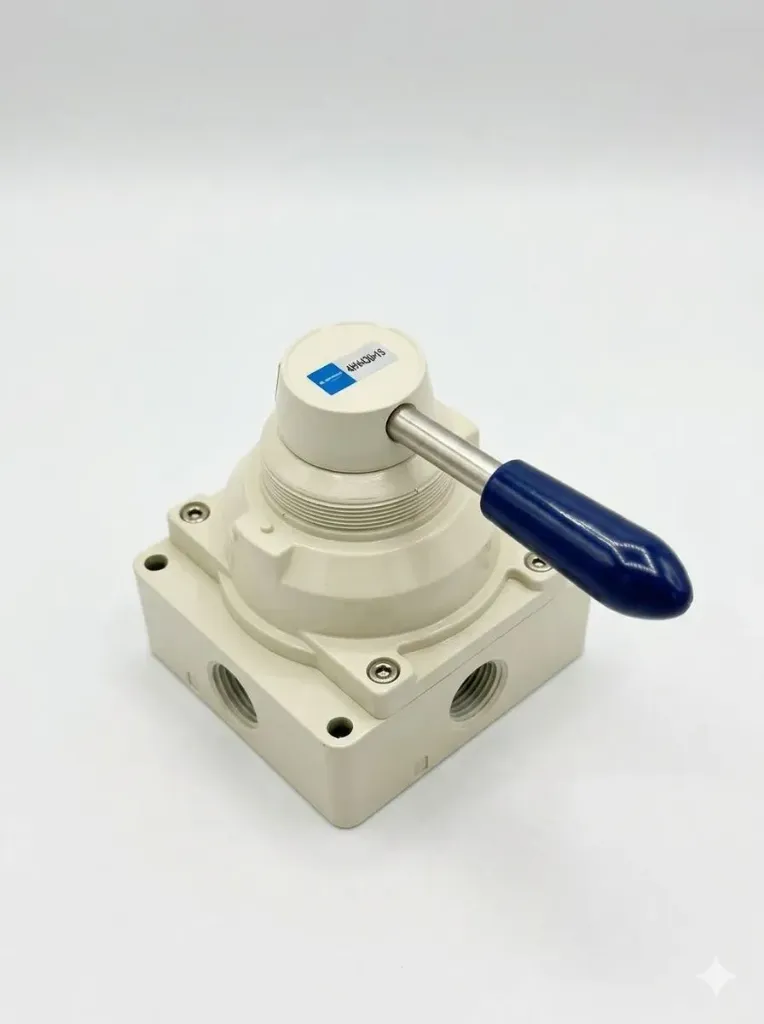

The AIRMIXS 4HV430-15 is a high-flow, manual 4/3-way rotary hand lever valve engineered for the precise directional control of pneumatic actuators and cylinders. Unlike standard toggle valves, the 4HV series utilizes a smooth rotary disk mechanism that allows for three distinct functional positions: extending, retracting, and a center-stop.
This valve features a rugged, square-base design with G 1/2" porting, making it suitable for large-scale industrial systems requiring high air volume. The rotary handle is ergonomically designed for easy manual operation, and the valve body is constructed from reinforced materials to withstand high-pressure environments. Its "3-position closed center" function is particularly useful for stopping a cylinder mid-stroke and holding its position securely.
Feature | Specification |
|---|
Model | 4HV430-15 |
Brand | AIRMIXS |
Valve Type | 4 Port 3 Position (4/3 Way) |
Function | Rotary Lever (Closed Center) |
Port Size | G 1/2" |
Operating Medium | Compressed Air (40$\mu$m Filtered) |
Operating Pressure | 0 – 1.0 MPa (0 – 10 bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 bar / 215 PSI) |
Operating Temp. | -5°C to 60°C |
Rotation Angle | 90° (45° per side) |
Body Material | Aluminum Alloy / Die-cast |
Installation | Panel Mount or Surface Mount |
