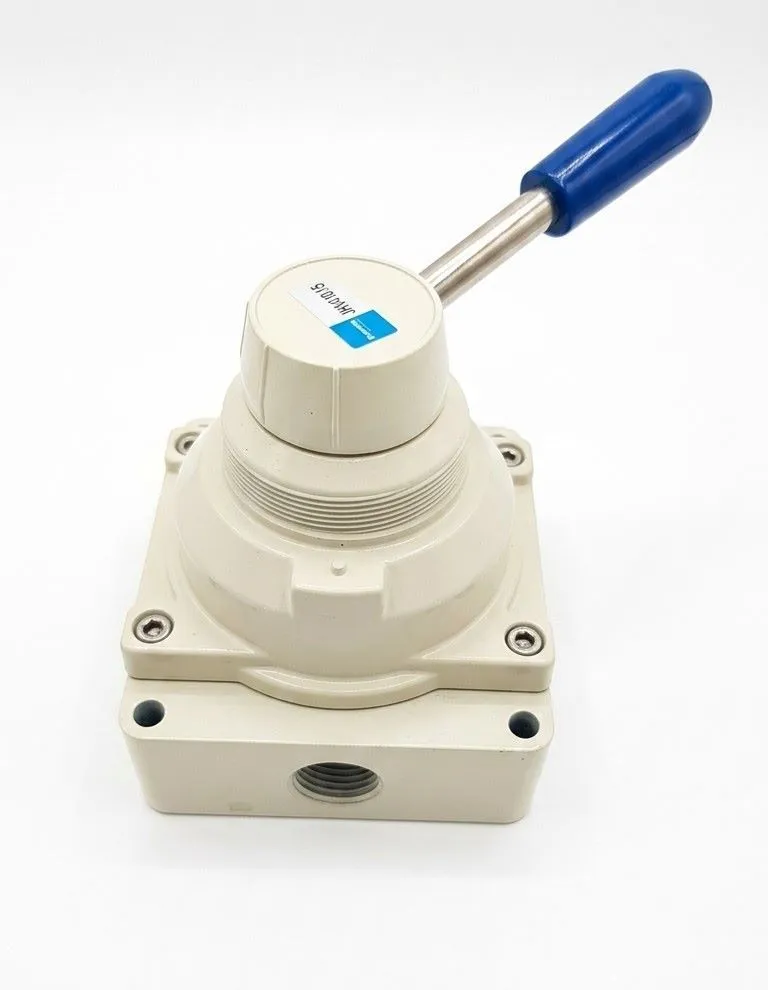

The AIRMIXS 4HV410-15 is a heavy-duty, manual rotary-style hand lever valve engineered for precision directional airflow control within industrial pneumatic automation systems. Designed with an ergonomic 90-degree throw manual lever, it provides operators with exact orientation and a distinct, smooth tactile feel during operation.
Featuring a high-capacity interior cross-section, this valve delivers a large effective circulation area that significantly minimizes pressure drops across the line. The sturdy block-style body supports stable standalone installation or direct integration onto control panels using a dedicated surface mounting nut layout.
Precise Control: Manual direct-acting lever system yields smooth steering and accurate positioning.
Low Pressure Loss: Optimized internal fluid pathways maximize flow rates and reduce restriction.
Dual Installation Options: Ready for standalone structural body mounting or clean front-panel installation.
Robust Seal Architecture: Constructed to reliably prevent micro-leaks and ensure consistent actuation intervals over an extended service lifespan.
Parameter | Specification Details |
|---|
Brand | AIRMIXS |
Model Number | 4HV410-15 |
Valve Function Type | 4-Port (4-Way) / 2-Position Directional Switch |
Actuation Mode | Manual Hand Lever (Rotary Style) |
Main Port Size | 1/2" PT / NPT / G Connection Threads |
Operating Medium | Compressed Air (filtered by a 40 μm filter element) |
Working Pressure Range | 0 to 1.0 MPa (0 ~ 145 psi) |
Proof Pressure Rating | 1.5 MPa (215 psi) |
Effective Sectional Area | 88.0 \text{ mm}^2($C_v = 4.89) |
Operating Temperature Range | -20°C to 70°C (-4°F to 158°F) |
Lever Swing Angle | 90° Total Travel |
Lubrication Requirements | Not required (Pre-lubricated for life) |
Mounting Configuration | Panel Mount or Bottom/Body Surface Mount |
