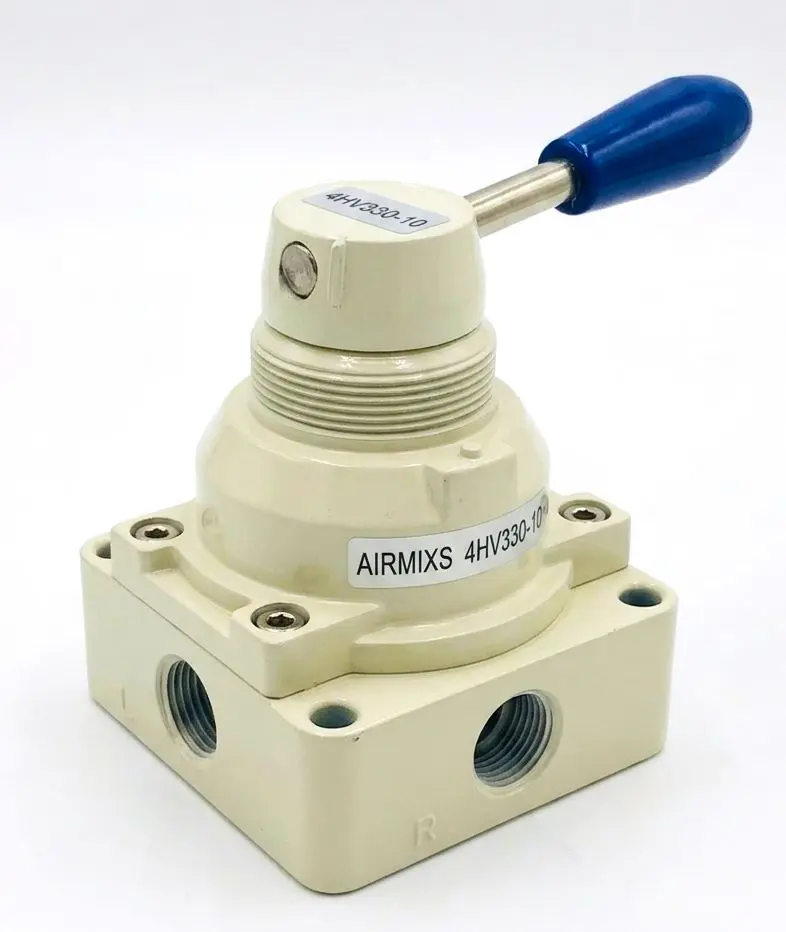

The AIRMIXS 4HV330-10 is a high-reliability, manual rotary control valve designed for the direct directional control of pneumatic actuators. This 4-port, 3-position (4/3 way) valve features a smooth, ergonomic hand lever that allows operators to easily switch between extending, retracting, and centering a cylinder with precision.
Built with a robust aluminum alloy base and a reinforced mechanical structure, the 4HV330-10 is engineered for long-term durability in industrial environments. Its rotary disk design ensures a tight seal and low switching friction, making it an ideal solution for manual override systems, clamping fixtures, and pneumatic workstations.
Feature | Specification |
|---|
Model | 4HV330-10 |
Working Medium | Filtered Compressed Air (40 $\mu$m) |
Position and Way No. | 4-Port / 3-Position (Closed Center) |
Port Size | G 3/8" (10) |
Pressure Range | 0 – 1.0 MPa (0 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Operating Temperature | -5°C to 60°C |
Operating Angle | 90° |
Body Material | Aluminum Alloy |
Actuator Type | Manual Hand Lever |
