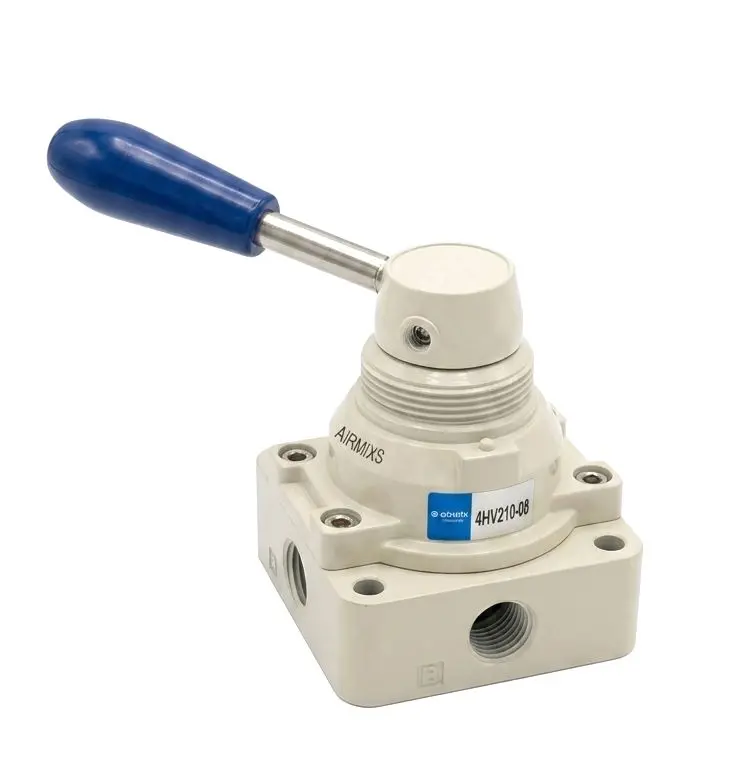

The AIRMIXS 4HV210-08 is a precision-engineered manual rotary valve designed for the directional control of pneumatic actuators. This 4-port, 3-position (4/3 way) valve features a durable, ergonomic blue hand lever that allows for smooth switching between cylinder extension, retraction, and a neutral holding position.
Built with a high-strength aluminum alloy body, this valve is designed for long-term reliability in industrial automation environments. Its rotary disk design ensures a high seal integrity and low friction during operation, making it ideal for manual workstations, pneumatic clamping, and mechanical override applications.
Feature | Specification |
|---|
Model | 4HV210-08 |
Working Medium | Filtered Compressed Air (40 $\mu$m) |
Operating Mode | Manual Hand Lever Rotary Type |
Position and Way No. | 4-Port / 3-Position |
Port Size | G 1/4" |
Pressure Range | 0 – 1.0 MPa (0 – 145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Operating Temperature | -5°C to 60°C |
Material | Aluminum Alloy Body |
Mounting | Panel or Base Plate Mounting |
