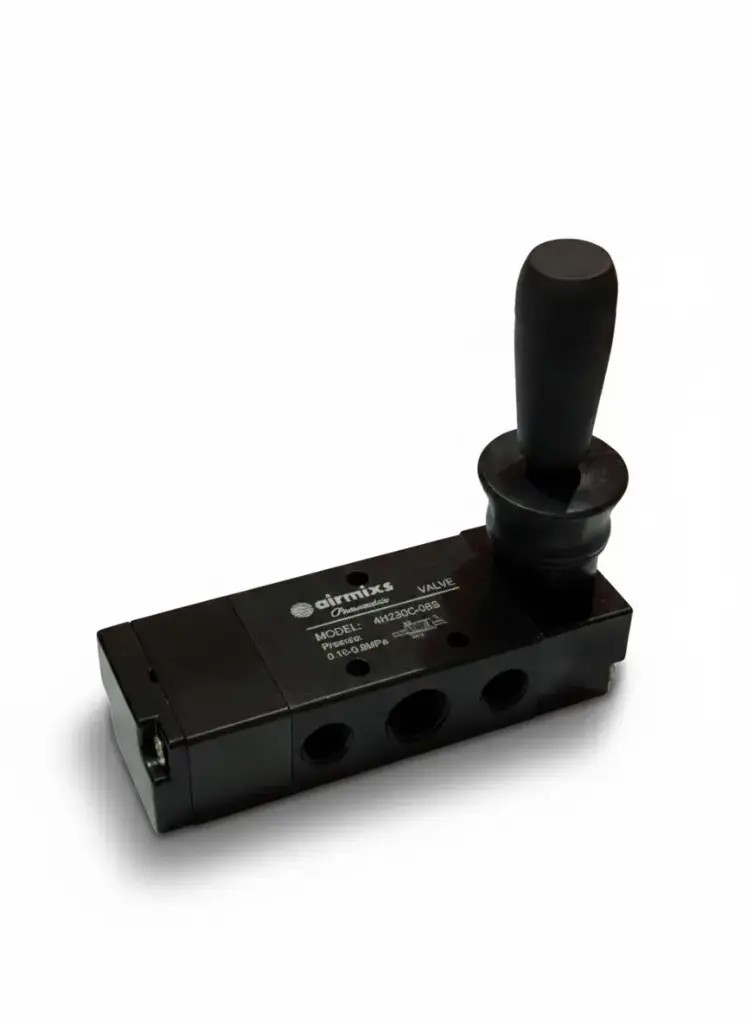

The 4H230C-08S is a robust manual reversing valve that offers precise control over air flow direction, rate, and speed. Its Closed Center design is a critical safety and efficiency feature; when the lever is in the middle (neutral) position, all ports are blocked, preventing the cylinder from moving even if the air supply remains active.
Feature | Specification |
|---|
Model | 4H230C-08S |
Valve Type | 5-Port, 3-Position (5/3 Way) |
Function | Closed Center(Stops cylinder in place) |
Reset Type | Spring Return(The "S" suffix indicates automatic reset to neutral) |
Port Size | 1/4" PT / G |
Exhaust Port Size | 1/8" (for silencers) |
Effective Area | 12 $mm^2$to 16 $mm^2$(Cv = 0.67 to 0.89) |
Operating Pressure | 0 – 0.8 MPa(0 – 114 PSI) |
Operating Temperature | -20°C to 70°C |
Material | High-precision Aluminum Alloy |
