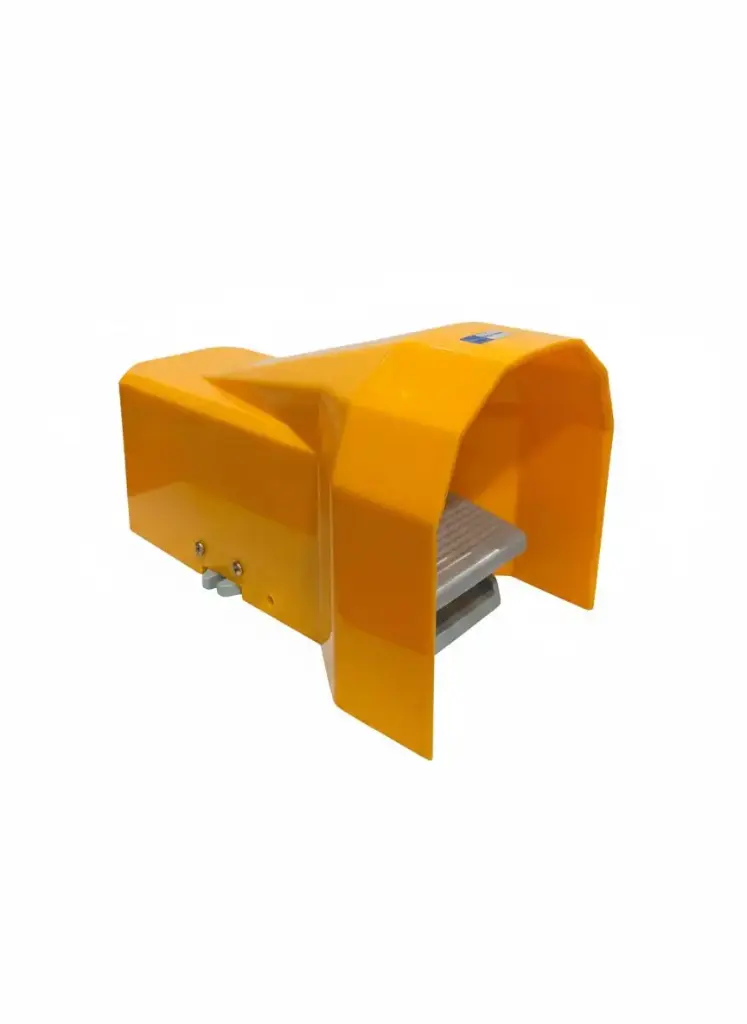

The 4F210-08G Foot Pedal Valve is a robust solution for hands-free pneumatic control. Engineered for industrial fabrication and assembly lines, this valve allows operators to actuate air-powered equipment—such as clamps, presses, or cylinders—while keeping their hands free to manage workpieces.
Feature | Specification |
|---|
Model | 4F210-08G (Standard 1/4") |
Port Size | Inlet/Outlet: 1/4" G| Exhaust: 1/8" |
Valve Type | 5 Port / 2 Position (5/2 Way) |
Action Type | Manual / Foot Operated |
Operating Pressure | 0 – 0.8 MPa (0 – 114 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Operating Temperature | -5°C to 60°C |
Body Material | Aluminum Alloy |
Guard Material | High-Impact Reinforced Polymer/Steel |
Lubrication | Not Required (Pre-lubricated) |
