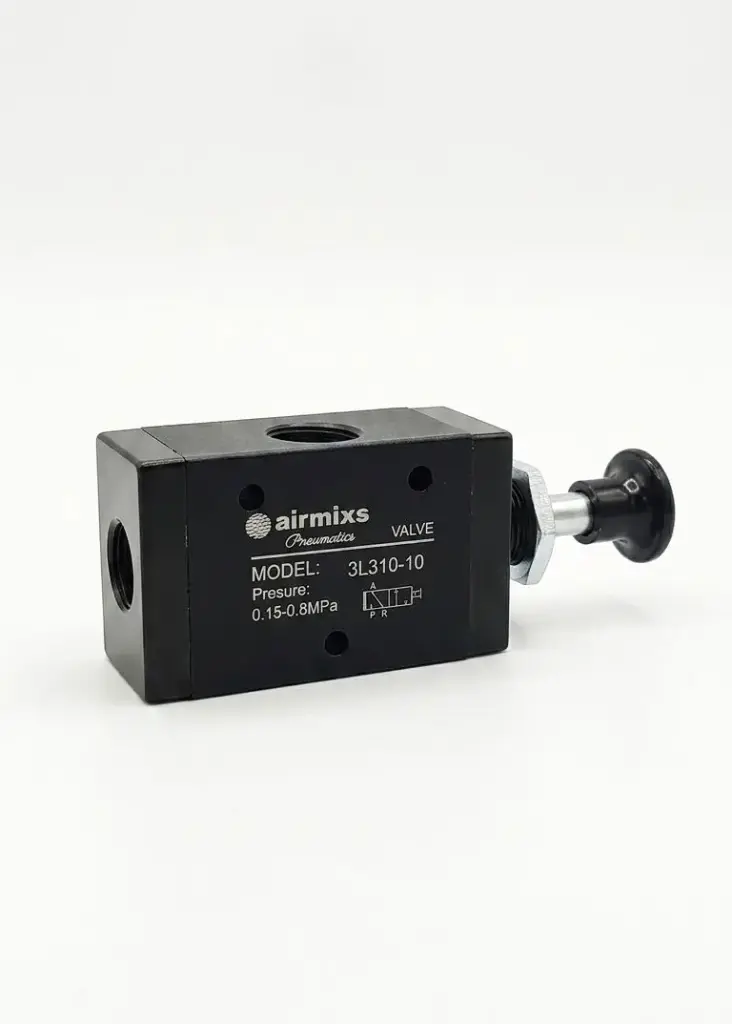

The AIRMIXS 3L310-10 is a high-capacity manual control valve designed for demanding pneumatic applications. Featuring a 3/8" port size, this valve is engineered to deliver high airflow for larger single-acting cylinders, air-driven equipment, or as a primary shut-off and exhaust point in a pneumatic circuit.
This 300-series valve utilizes a detented manual "hand pull" mechanism, which ensures the valve remains in its set position (open or closed) until the operator manually changes it. The internal sliding column is precision-machined with a specialized low-friction coating to ensure smooth actuation and an industry-leading service life.
Key Features:
High Flow Rate: Large 3/8" ports minimize air restriction, providing rapid response for heavy-duty pneumatic tools.
Robust Aluminum Body: Lightweight yet highly durable aluminum alloy construction resists corrosion and impacts.
Maintenance-Free: Internal self-lubricating seals eliminate the need for an inline oiler.
Versatile Installation: Supports both inline plumbing and secure panel-mounting via the threaded neck and locking nut.
Specification | Details |
|---|
Position & Way No. | 3 Port / 2 Position |
Port Size | 3/8" BSP (Air Inlet P, Outlet A, Exhaust R) |
Operating Medium | 40 Micron Filtered Compressed Air |
Operating Pressure | 0 – 1.0 MPa (0 – 145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Working Temperature | -20°C to +70°C |
Flow Capacity (Cv) | 1.65 – 1.67 ($28.0mm^2$ – $30.0mm^2$ Orifice) |
Lubrication | Not Required (Dry air compatible) |
Material | Aluminum Alloy Body, NBR Seals |
