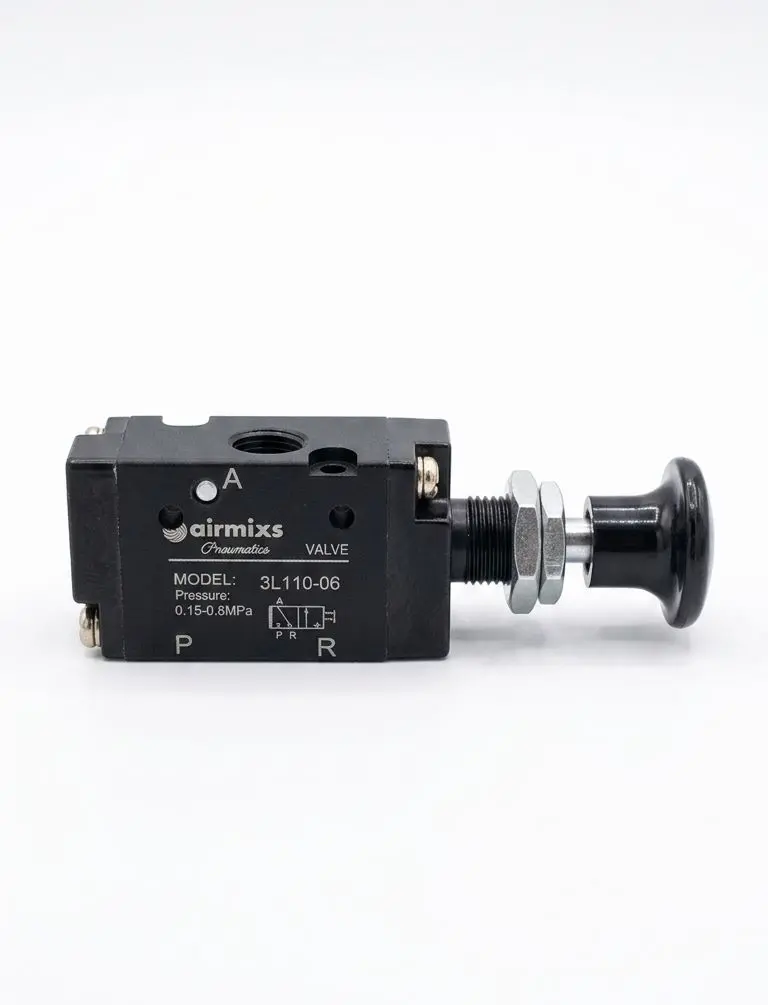

The AIRMIXS 3L110-06 is a compact, high-precision manual control valve designed for controlling single-acting pneumatic cylinders or as a signal valve in larger air systems. Unlike the 4L series, this 3-port valve is specifically engineered to pressurize a line in one position and exhaust it in the other.
This valve features a "detented" manual operation, meaning the knob stays in the position where it is placed (pushed or pulled) until moved again by the operator. Its sliding column structure provides excellent airtightness and requires very little force to actuate, regardless of the working pressure.
Key Features:
3/2 Way Functionality: Ideal for single-acting cylinder control, air venting, or pilot signal triggering.
Oil-Free Operation: Internal components are designed for dry air use, eliminating the need for constant lubrication.
Panel Mount Ready: Includes a threaded neck and locking nut for secure mounting on control panels or machine frames.
Low Attrition Design: Specialized internal bore processing ensures low friction, sensitive direction changes, and an extended life cycle.
Specification | Details |
|---|
Position & Way No. | 3 Port / 2 Position |
Port Size | 1/8" BSP / NPT (Inlet P, Outlet A, Exhaust R) |
Operating Medium | 40 Micron Filtered Compressed Air |
Operating Pressure | 0 – 0.8 MPa (0 – 114 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Working Temperature | -20°C to +70°C |
Flow Capacity (Cv) | 0.67 ($10.2mm^2$ Orifice) |
Material | Aluminum Alloy Body, NBR Seals |
