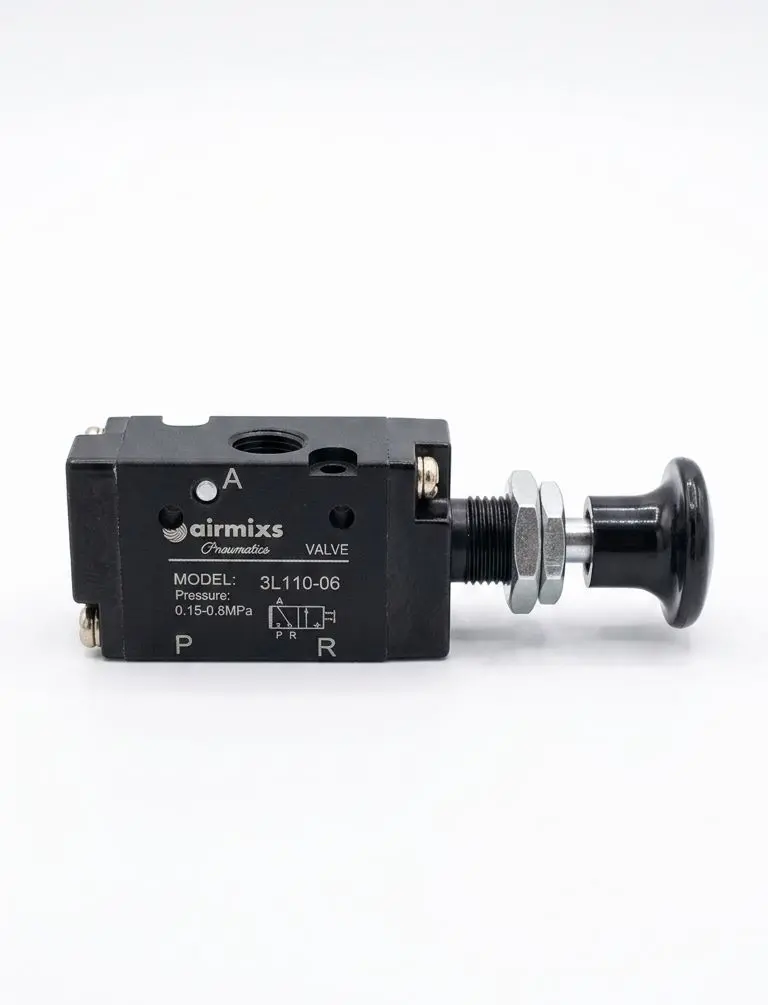

The AIRMIXS 3L110-06 is a compact, high-precision manual control valve designed for controlling single-acting pneumatic cylinders or as a signal valve in larger air systems. Unlike the 4L series, this 3-port valve is specifically engineered to pressurize a line in one position and exhaust it in the other.
This valve features a "detented" manual operation, meaning the knob stays in the position where it is placed (pushed or pulled) until moved again by the operator. Its sliding column structure provides excellent airtightness and requires very little force to actuate, regardless of the working pressure.
Specification | Details |
|---|
Position & Way No. | 3 Port / 2 Position |
Port Size | 1/8" BSP / NPT (Inlet P, Outlet A, Exhaust R) |
Operating Medium | 40 Micron Filtered Compressed Air |
Operating Pressure | 0 – 0.8 MPa (0 – 114 PSI) |
Proof Pressure | 1.2 MPa (174 PSI) |
Working Temperature | -20°C to +70°C |
Flow Capacity (Cv) | 0.67 ($10.2mm^2$Orifice) |
Material | Aluminum Alloy Body, NBR Seals |
