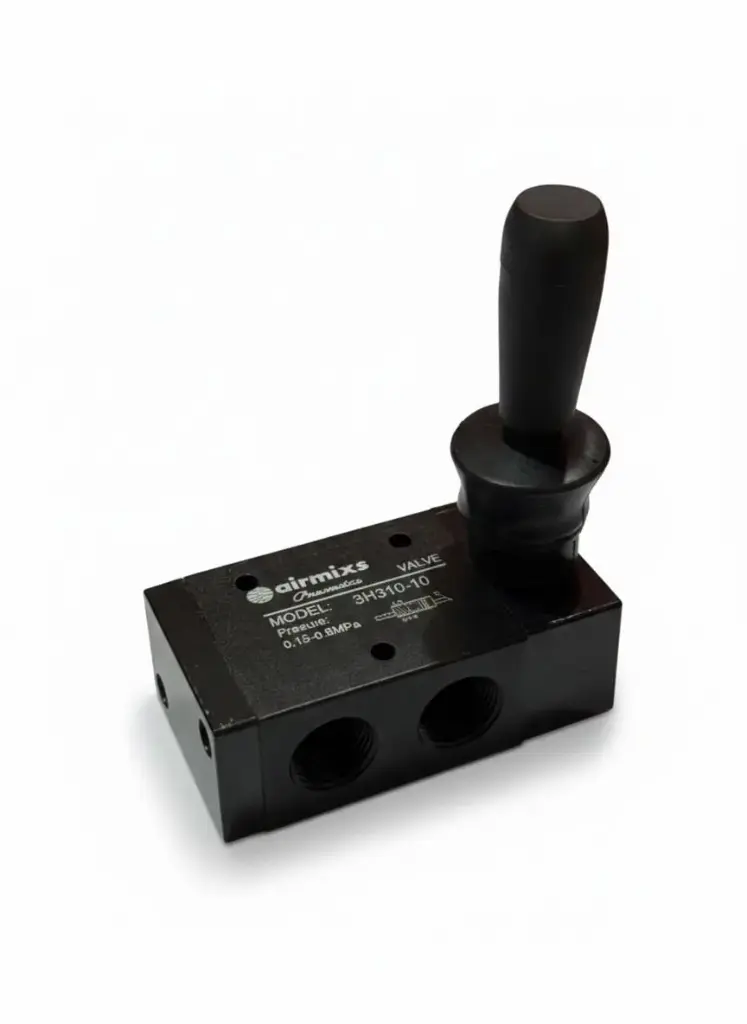

The 3H310-10 is a versatile manual control element used to manage compressed air in industrial automation circuits. It is specifically designed for single-acting cylinders, where air is used to extend the piston and an internal spring (or gravity) is used to retract it.
Feature | Specification |
|---|
Model | 3H310-10 |
Valve Type | 3-Port, 2-Position (3/2 Way) |
Actuator Type | Hand Lever(Detented/Manual Reset) |
Port Size | 3/8" PT / G |
Effective Sectional Area | 30.0 $mm^2$(Cv = 1.67) |
Operating Pressure | 0 – 0.8 MPa(0 – 114 PSI) |
Max. Proof Pressure | 1.0 MPa (145 PSI) – 1.5 MPa |
Operating Temp. Range | 0°C to 60°C |
Body Material | Aluminum Alloy |
Lubrication | Not Required |
