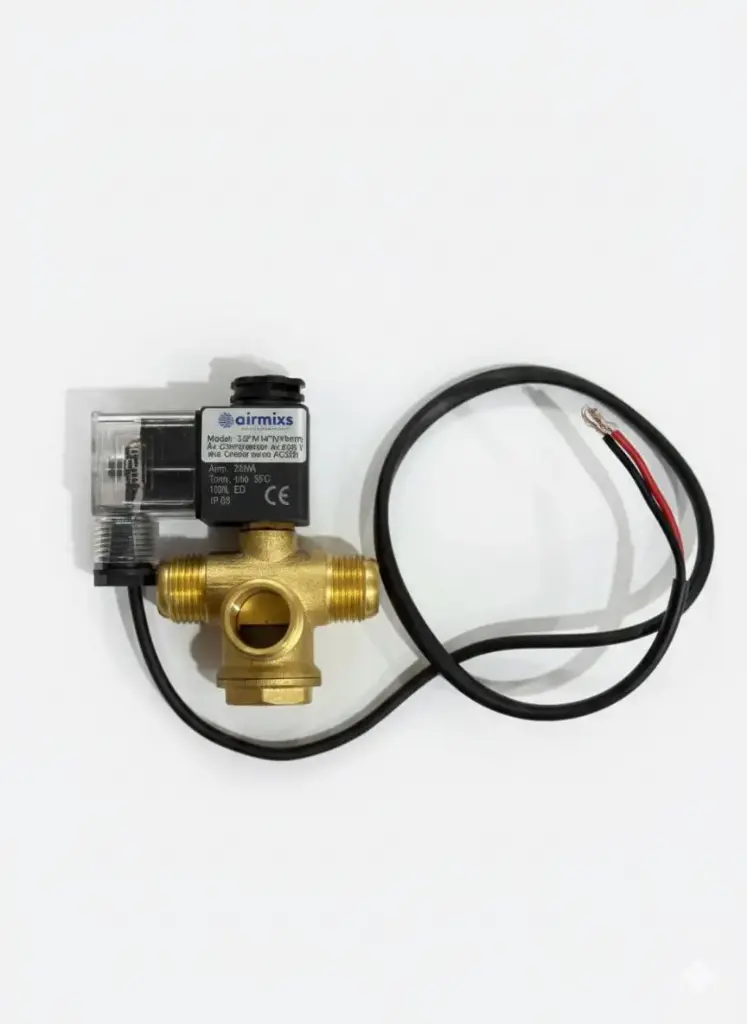

A 3/8" air compressor solenoid valve serves as the "brain" of the air circuit, converting electrical signals into mechanical action to regulate air delivery. It is essential for protecting the compressor motor from starting under heavy load and maintaining system safety during power failures.
Feature | Specification |
|---|
Connection Size | 3/8" BSP / G |
Valve Function | 2-Way Normally Open (NO) or Normally Closed (NC) |
Operation Type | Direct Acting or Diaphragm Pilot Operated |
Orifice Size | 11mm to 14.5mm |
Operating Pressure | 0 to 40 bar(depending on model) |
Voltage Options | 24V DC / 110V AC / 220V AC(50/60Hz) |
Flow Capacity (Cv) | Approx. 1.0 to 3.0 |
Temperature Range | -10°C to 80°C(Standard NBR seals) |
Protection Class | IP65(Dust and Water-Jet Resistant) |
