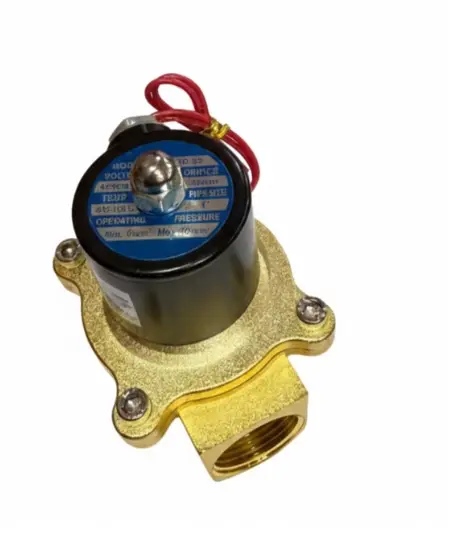

The 2W250-25 is a high-capacity, industrial-strength solenoid valve designed for systems requiring a large volume of flow through 1-inch piping . It is the "heavyweight" of the 2W-series, balancing a massive 25mm internal opening with the ability to operate without any assist from line pressure.
Feature | Specification |
|---|
Model | 2W250-25 |
Body Material | Forged Brass |
Type | 2-Way, 2-Position, Semi-Direct Lifting Diaphragm |
Initial State | Normally Closed (NC) |
Port Size | 1" G |
Orifice Size | 25 mm |
Flow Coefficient ($C_v$) | 12.0 |
Operating Pressure | Air:0 – 1.0 MPa (145 PSI) | Water/Oil:0 – 0.7 MPa (101 PSI) |
Media Temperature | -5°C to 80°C (Standard NBR) |
Compatible Media | Water, Air, Oil, Low-viscosity fluids |
