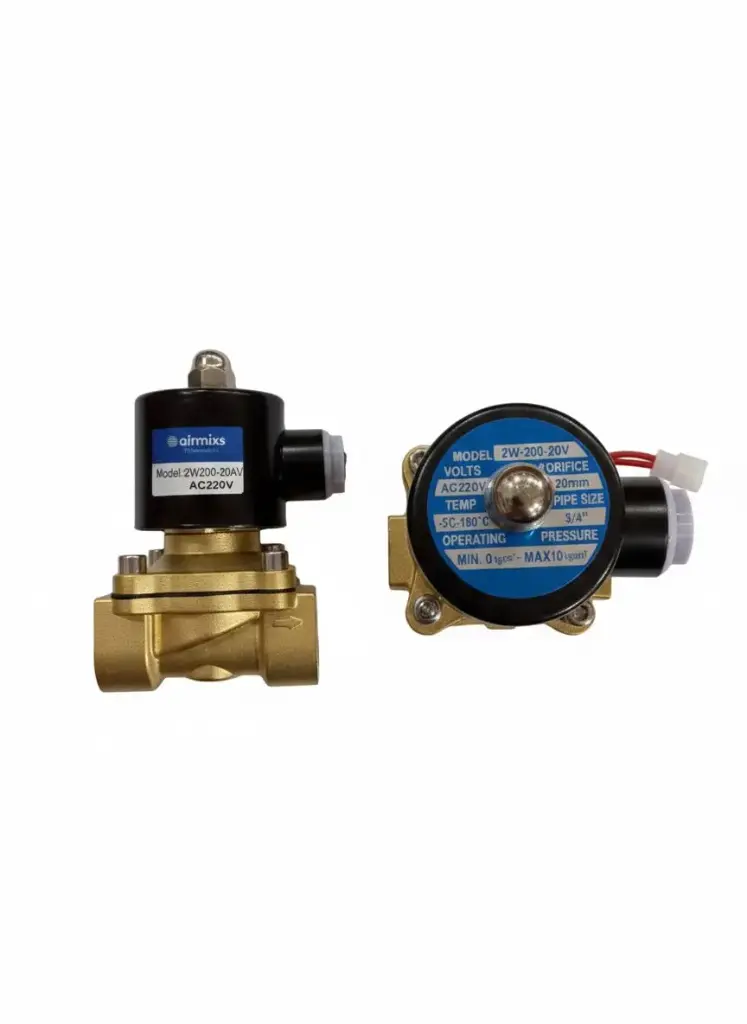

The 2W200-20AV is a 2-way, semi-direct acting solenoid valve designed for 3/4" piping. The "AV" suffix is the most important part of this model number: "A" usually signifies a specific AC voltage configuration (often with a DIN connector), and "V" indicates that the valve is equipped with Viton (FKM) seals.
The Viton seals make this version much more durable than the standard NBR models when exposed to heat or chemicals.
Feature | Specification |
|---|
Model | 2W200-20AV |
Body Material | Forged Brass |
Seal Material | Viton (FKM) |
Type | 2-Way, 2-Position, Semi-Direct Lifting Diaphragm |
Port Size | 3/4" G |
Orifice Size | 20 mm |
Flow Coefficient ($C_v$) | 7.6 |
Operating Pressure | 0 – 1.0 MPa (0 – 145 PSI) |
Temperature Range | -10°C to 120°C(14°F to 248°F) |
Compatible Media | Hot water, Air, Oil, Gasoline, Mild Chemicals |
