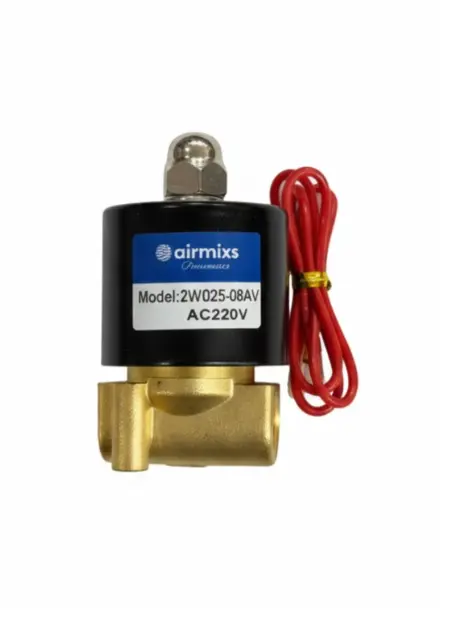

The 2W025-08AV is a specialized version of the standard brass solenoid valve. The "AV" suffix is critical: the "V" denotes a Viton (FKM) seal, and the "A" typically indicates an AC voltage 220V.
Because it uses a Viton seal instead of standard NBR, this valve is rated for higher temperatures and is compatible with more aggressive fluids like gasoline, chemicals, and hot water.
| Feature | Specification |
|---|
| Model | 2W025-06AV |
| Action Type | 2-Way, 2-Position, Direct Acting |
| Initial State | Normally Closed (NC) |
| Port Size | 1/4" (Standard for -06 series) |
| Orifice Diameter | 2.5 mm |
| Flow Coefficient ($C_v$) | 0.23 |
| Seal Material | Viton (FKM)— High-temperature/Chemical resistant |
| Body Material | Forged Brass |
| Operating Pressure | 0 – 1.0 MPa (0 – 145 PSI) |
| Operating Temperature | -15°C to 120°C(5°F to 248°F) |
