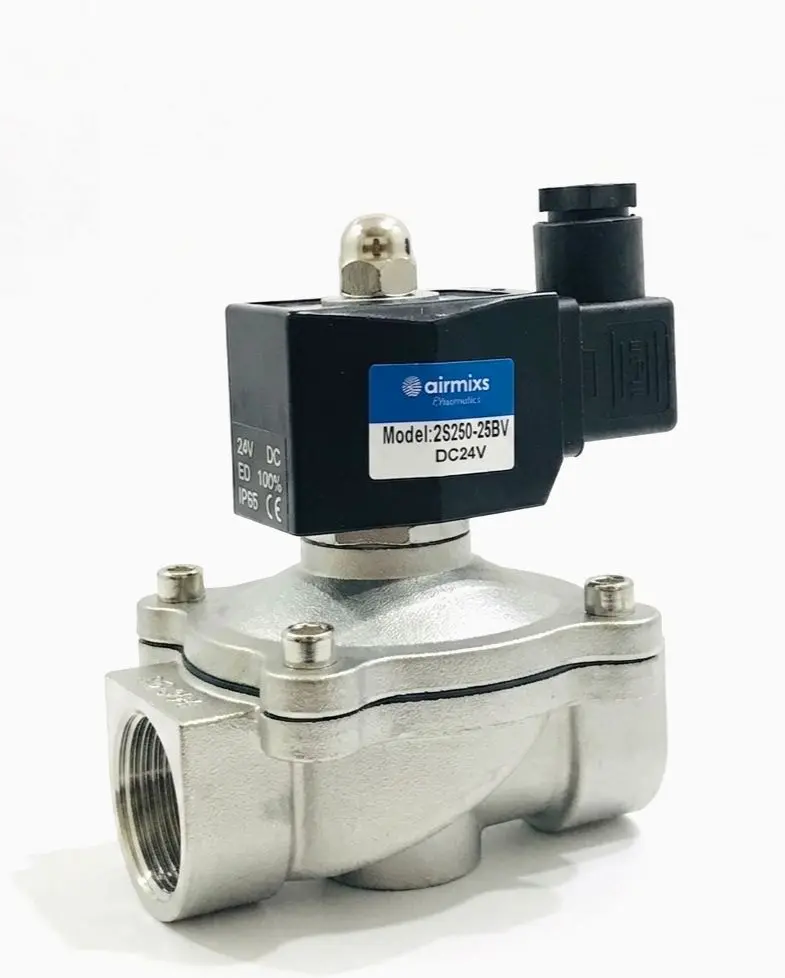

The AIRMIXS 2S250-25BV is a high-performance, direct-acting solenoid valve designed for reliable fluid control in demanding industrial environments. Constructed from premium 304 Stainless Steel, this valve is highly resistant to corrosion and suitable for water, air, oil, and vacuum applications.
This model features a Normally Closed (NC) configuration—meaning it remains closed until powered—and is equipped with a high-grade Viton (FKM) diaphragm. The Viton seal provides superior chemical resistance and a higher temperature threshold compared to standard NBR, making it ideal for hot water or specialized chemical media. Its compact design and DIN connector ensure easy installation and maintenance for automated systems.
Feature | Specification |
|---|
Model | 2S250-25BV |
Type | 2-Port, 2-Position (2/2 Way) |
Acting Type | Direct Acting / Diaphragm Operated |
Operation State | Normally Closed (NC) |
Body Material | 304 Stainless Steel |
Seal Material | Viton (FKM) - Designated by "V" |
Port Size | 1" G / PT / NPT |
Orifice Diameter | 25 mm |
Flow Coefficient (Cv) | 12.0 |
Operating Voltage | DC 24V (±10% Tolerance) |
Operating Pressure | 0 to 1.0 MPa (0 to 145 psi) |
Fluid Temperature | -5°C to +120°C (with Viton Seal) |
Protection Class | IP65 (Dust-proof & Water-resistant) |
Electrical Connection | DIN Socket (Join Connector) |
