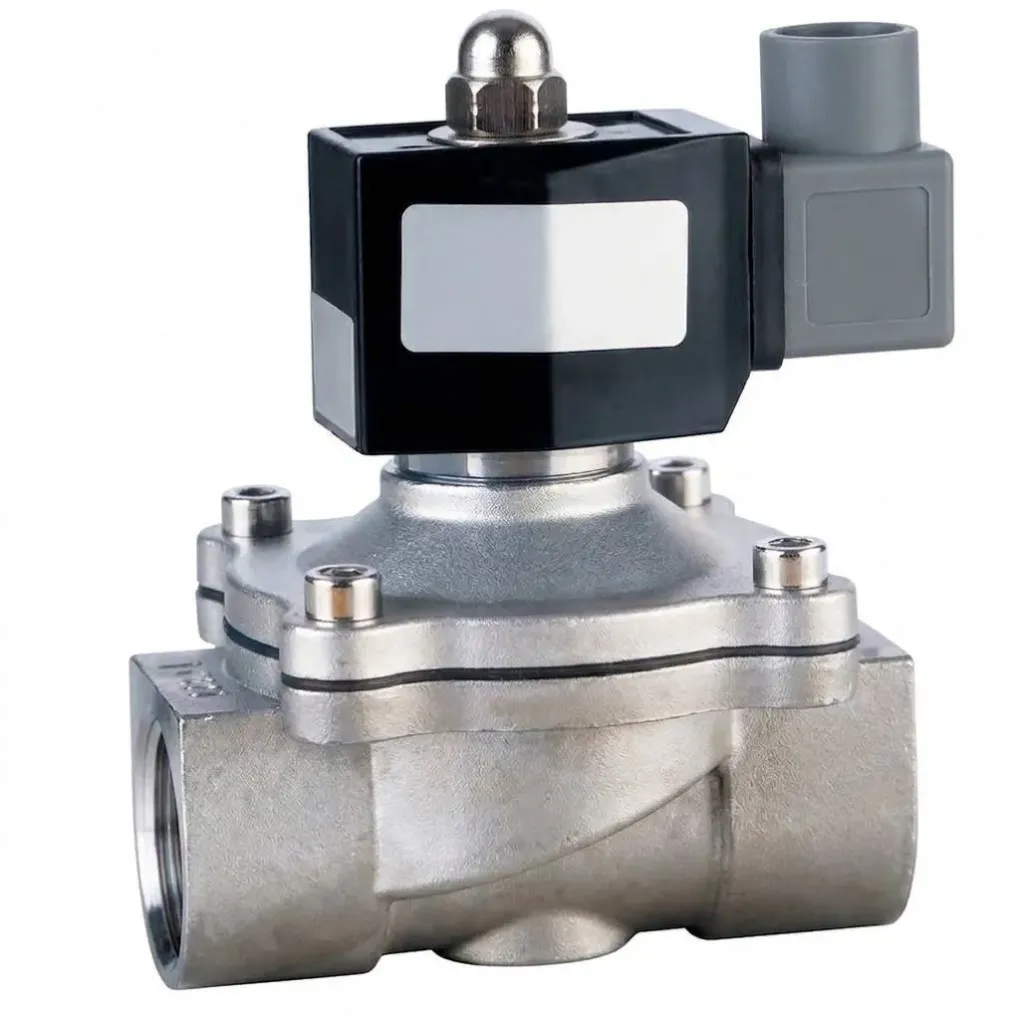

The AIRMIXS 2S200-20BV DC24V is a heavy-duty 2-way direct-acting solenoid valve engineered for precise fluid control of hot water, steam, air, light oils, and aggressive fluids. Powered by a DC 24V coil and constructed with a robust stainless steel body paired with high-grade Viton (FKM) seals, this Normally Closed (NC) valve operates reliably at elevated temperatures up to 150°C. Featuring a direct-acting mechanism, it requires zero minimum operating pressure differential to function, making it an ideal choice for low-pressure systems, steam distribution lines, chemical processing, and mobile/automated DC power setups.
Parameter | Specification |
|---|
Model | 2S200-20BV |
Brand | AIRMIXS |
Valve Type | 2-Way / 2-Position, Direct-Acting |
Operation State | Normally Closed (NC) |
Port Size | 3/4" NPT / G |
Orifice Size | 20 mm |
Flow Coefficient (Cv) | 7.6 |
Operating Pressure | Air/Gas: 0 – 1.0 MPa (0 – 10 bar / 0 – 145 PSI)
Water/Oil/Steam: 0 – 0.7 MPa (0 – 7 bar / 0 – 101 PSI) |
Operating Temperature | -10°C to 150°C (14°F to 302°F) |
Fluid Compatibility | Air, Steam, Hot Water, Chemicals, Corrosive Fluids, Light Oils |
Coil Voltage | DC 24V |
Voltage Tolerance | ±10% |
Duty Cycle | 100% Continuous Duty |
Seal Material | Viton (FKM) |
